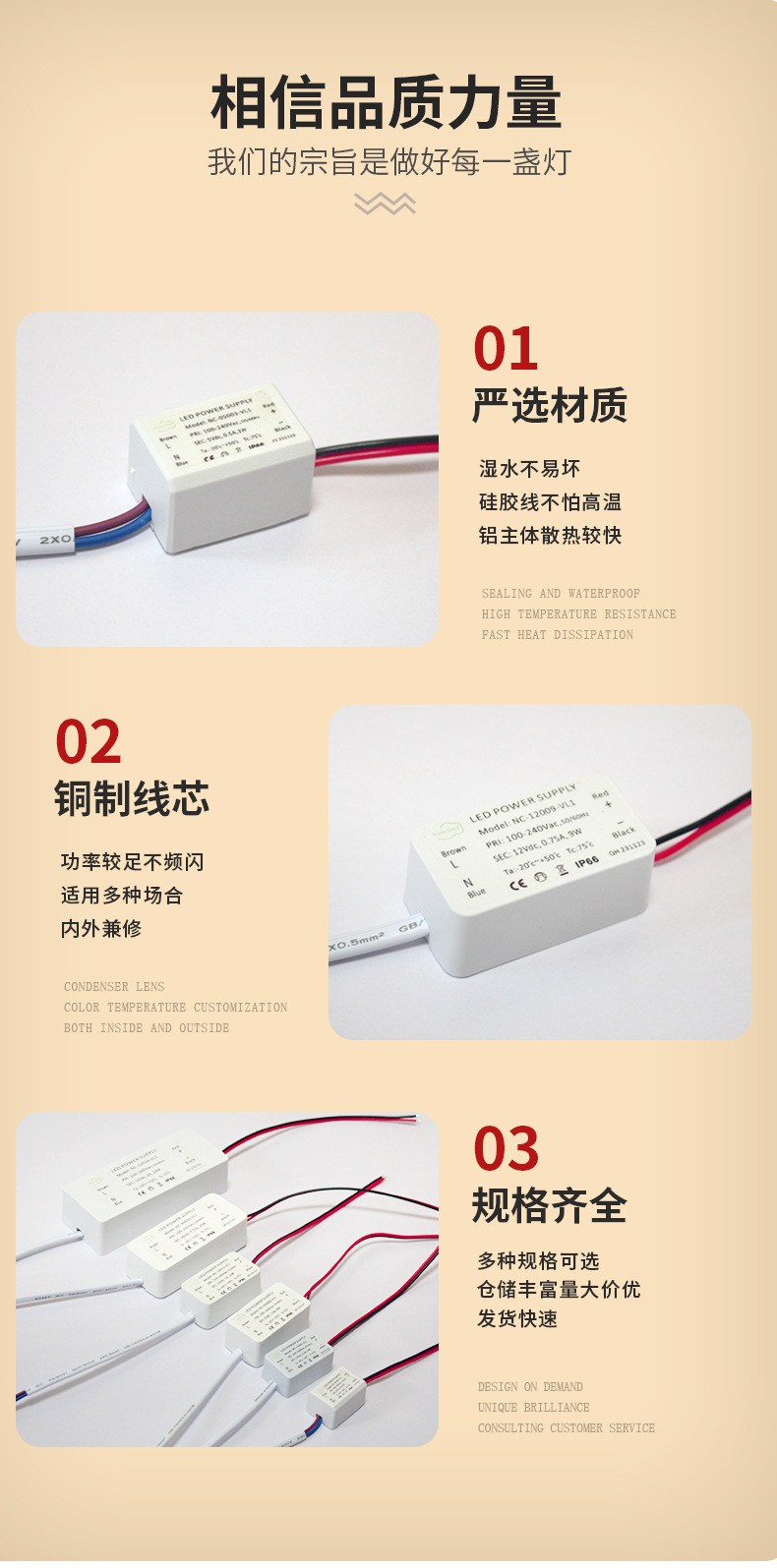

Plastic Shell IP20/IP65, LED Power Supply, can develop PCBA
5v12v24v36v 3w5w9w12w20w24w小功率小体积恒压LED驱动电源防水IP66
可SKD, 可做PCBA
输入输出线及线长可定制，OEM 标签，可贴或镭雕客供logo
具体需求请咨询客服！

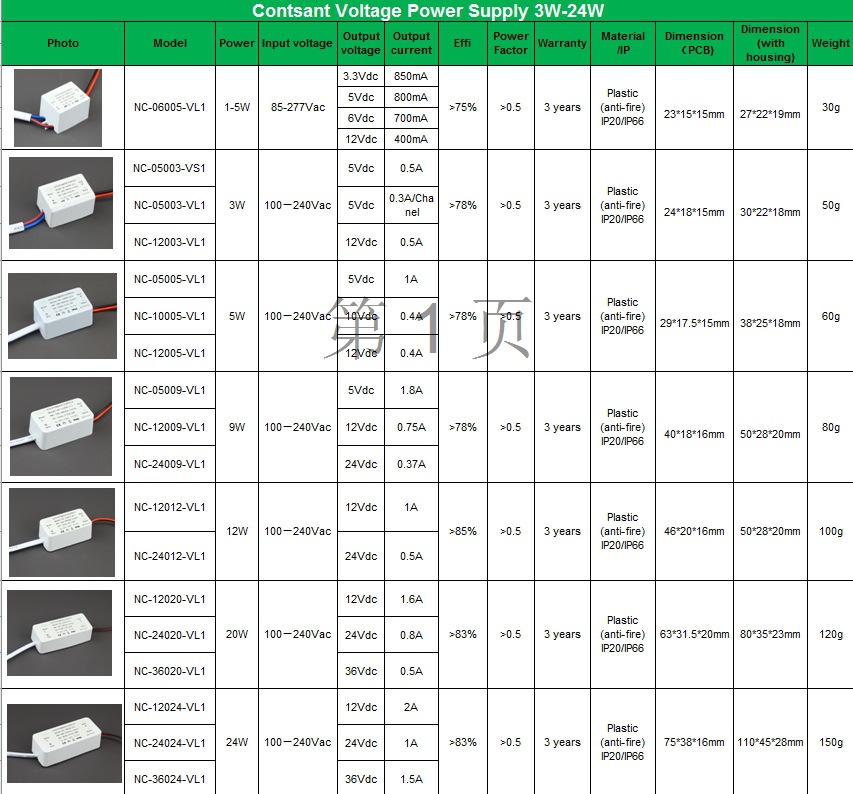

| Model | Power | Input voltage | Output voltage | Output current | Effi | Power Factor | Warranty | Material /IP | Dimension（PCB) | Dimension (with housing) | Weight |
| NC-06005-VL1 | 1-5W | 85-277Vac | 3.3Vdc | 850mA | >75% | >0.5 | 3 years | Plastic (anti-fire) IP20/IP66 | 23*15*15mm | 27*22*19mm | 30g |
| 5Vdc | 800mA | ||||||||||
| 6Vdc | 700mA | ||||||||||
| 12Vdc | 400mA | ||||||||||

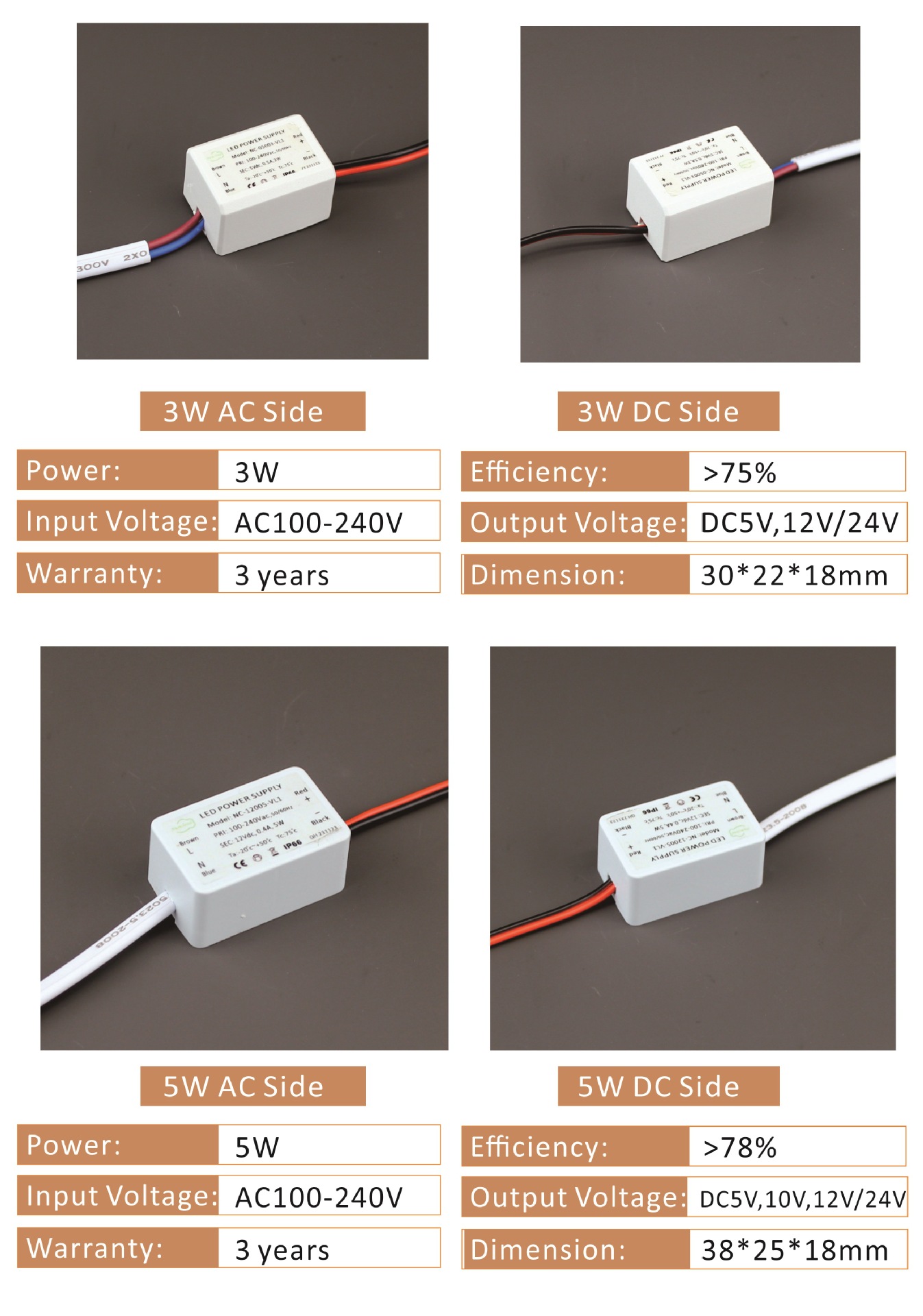

| NC-05003-VS1 | 3W | 100－240Vac | 5Vdc | 0.5A | >78% | >0.5 | 3 years | Plastic (anti-fire) IP20/IP66 | 24*18*15mm | 30*22*18mm | 50g |
| NC-05003-VL1 | 5Vdc | 0.3A/Chanel | |||||||||
| NC-12003-VL1 | 12Vdc | 0.5A | |||||||||
| NC-05005-VL1 | 5W | 100－240Vac | 5Vdc | 1A | >78% | >0.5 | 3 years | Plastic (anti-fire) IP20/IP66 | 29*17.5*15mm | 38*25*18mm | 60g |
| NC-10005-VL1 | 10Vdc | 0.4A | |||||||||
| NC-12005-VL1 | 12Vdc | 0.4A | |||||||||

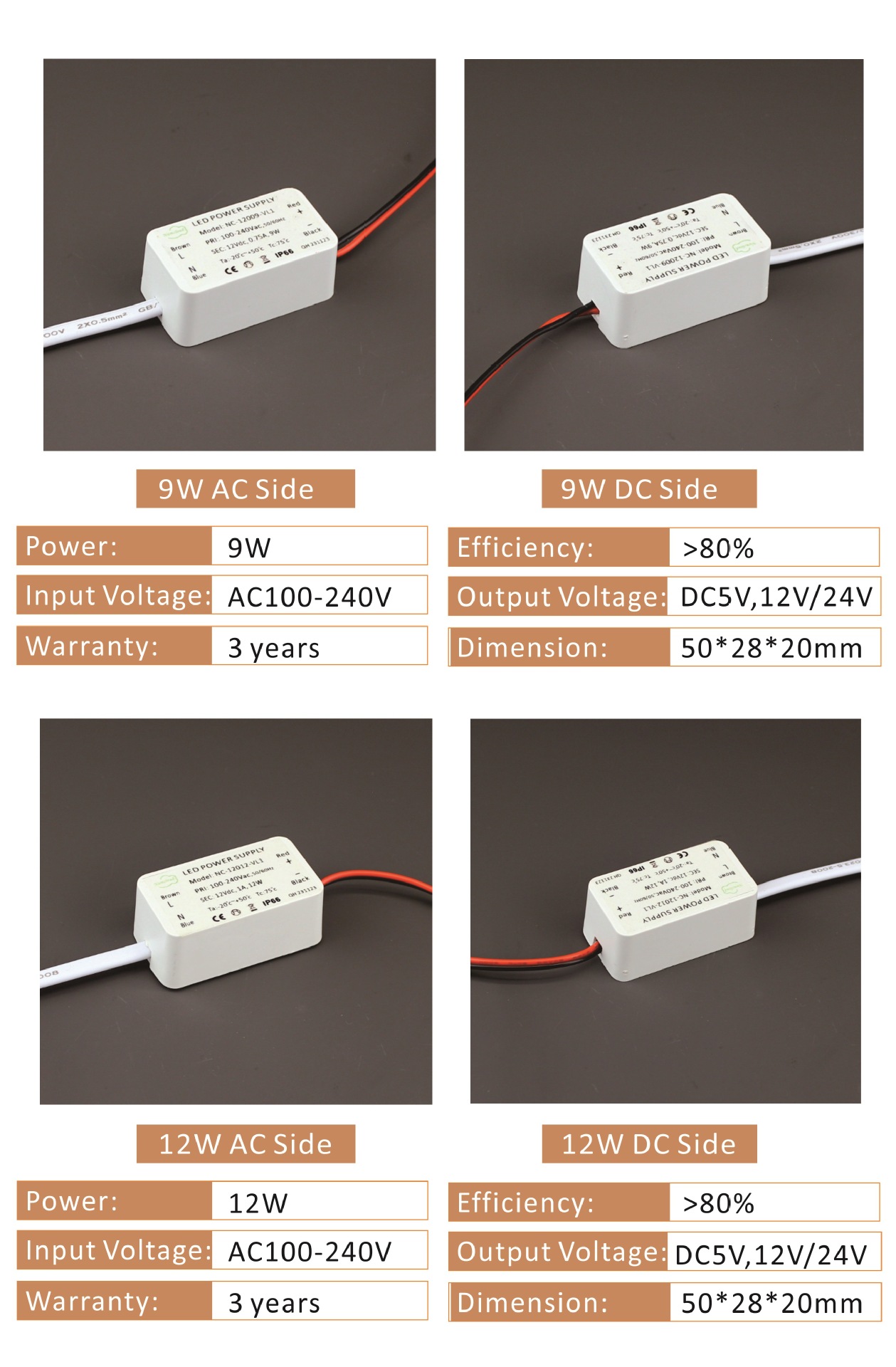

| NC-05009-VL1 | 9W | 100－240Vac | 5Vdc | 1.8A | >78% | >0.5 | 3 years | Plastic (anti-fire) IP20/IP66 | 40*18*16mm | 50*28*20mm | 80g |
| NC-12009-VL1 | 12Vdc | 0.75A | |||||||||
| NC-24009-VL1 | 24Vdc | 0.37A | |||||||||
| NC-12012-VL1 | 12W | 100－240Vac | 12Vdc | 1A | >85% | >0.5 | 3 years | Plastic (anti-fire) IP20/IP66 | 46*20*16mm | 50*28*20mm | 100g |
| NC-24012-VL1 | 24Vdc | 0.5A | |||||||||

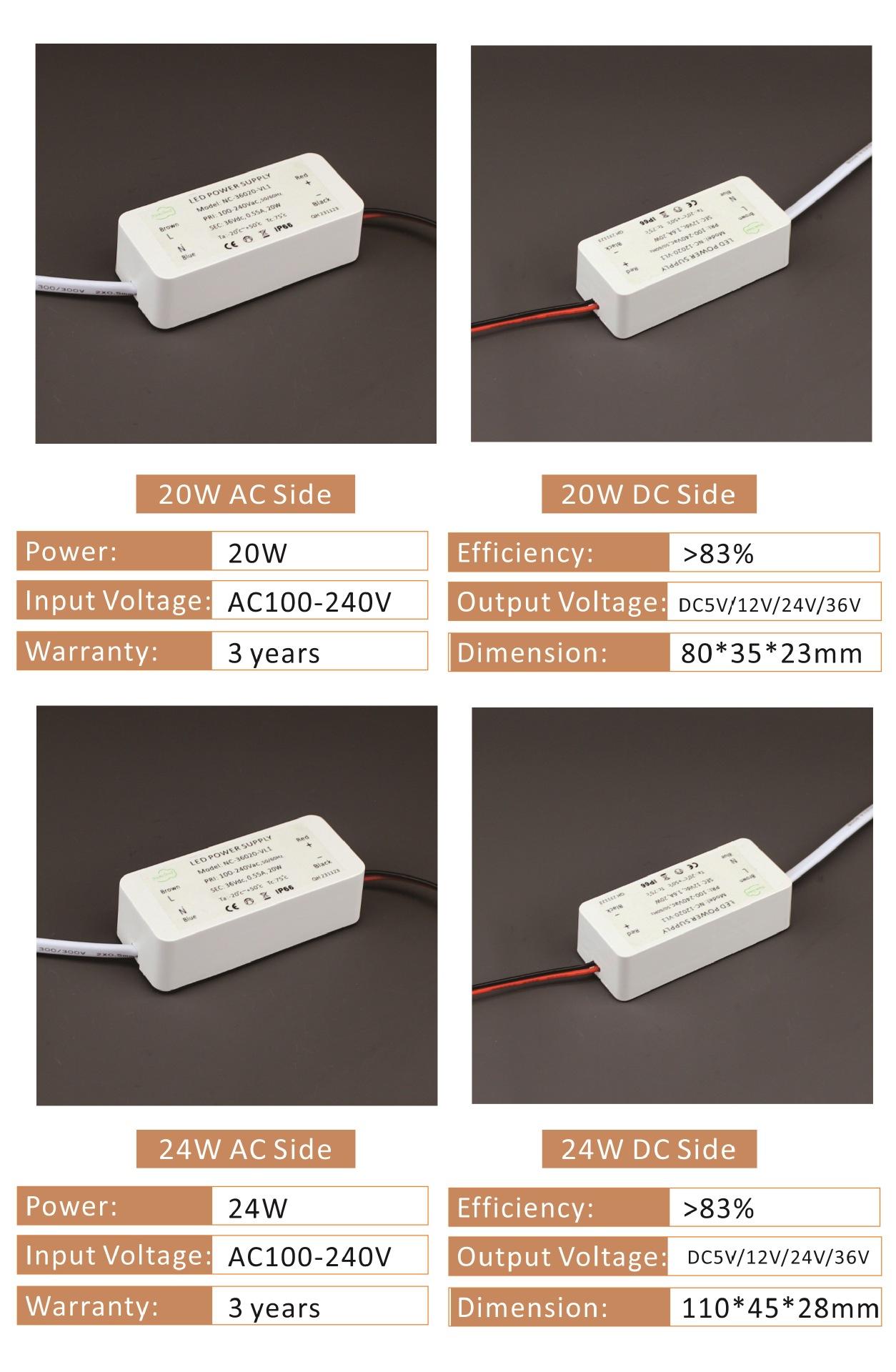

| NC-12020-VL1 | 20W | 100－240Vac | 12Vdc | 1.6A | >83% | >0.5 | 3 years | Plastic (anti-fire) IP20/IP66 | 63*31.5*20mm | 80*35*23mm | 120g |
| NC-24020-VL1 | 24Vdc | 0.8A | |||||||||
| NC-36020-VL1 | 36Vdc | 0.5A | |||||||||
| NC-12024-VL1 | 24W | 100－240Vac | 12Vdc | 2A | >83% | >0.5 | 3 years | Plastic (anti-fire) IP20/IP66 | 75*38*16mm | 110*45*28mm | 150g |
| NC-24024-VL1 | 24Vdc | 1A | |||||||||
| NC-36024-VL1 | 36Vdc | 1.5A |
