12V/24V 100W,150W,200W,300W,400W 恒压LED驱动开关电源防水IP67高PFC>0.95宽压100-277AC

Model Power Input voltage Output voltage Output current Effi PF Warranty Material /IP Size(mm) Weight

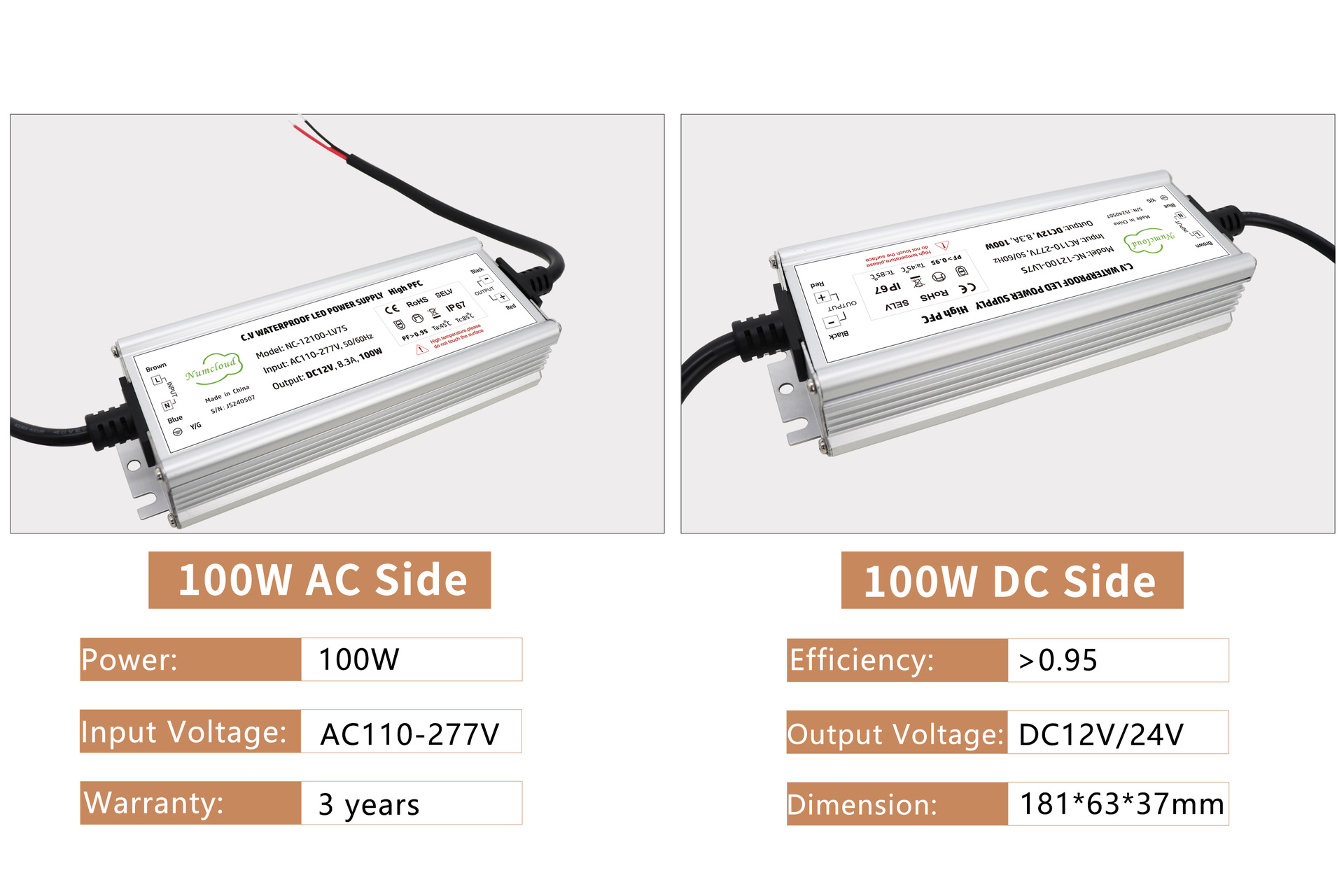

NC-12100-LV7S 100W 100-277V 12V 8.3A 86% >0.95 5 years Aluminum/ IP67 181*63*37mm 650g
NC-24100-LV7S                          24V 4.1A

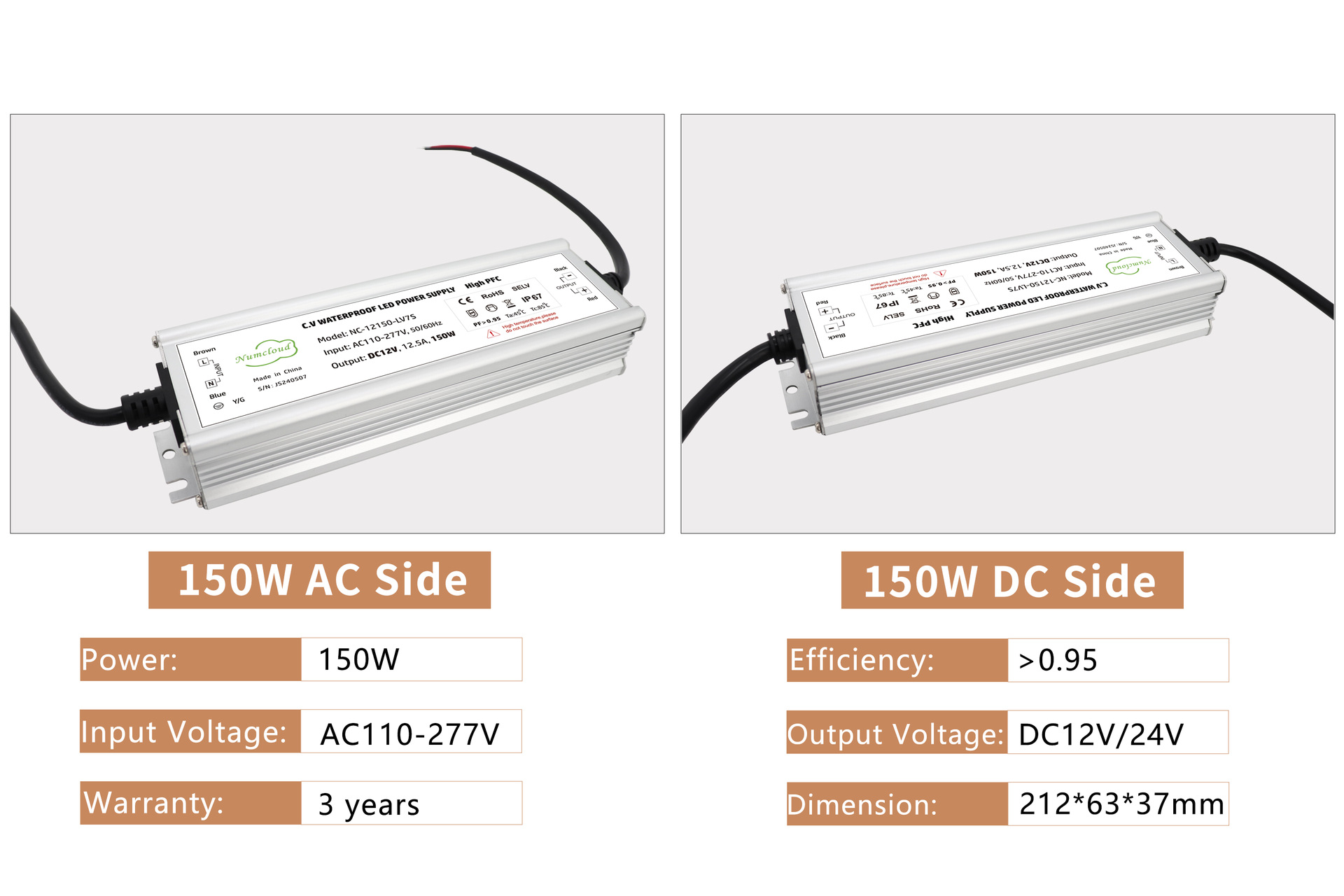

NC-12150-LV7S 150W 100-277V 12V 12.5A 88% >0.95 5 years Aluminum/ IP67 212*63*37mm 700g
NC-24150-LV7S                          24V 6.2A

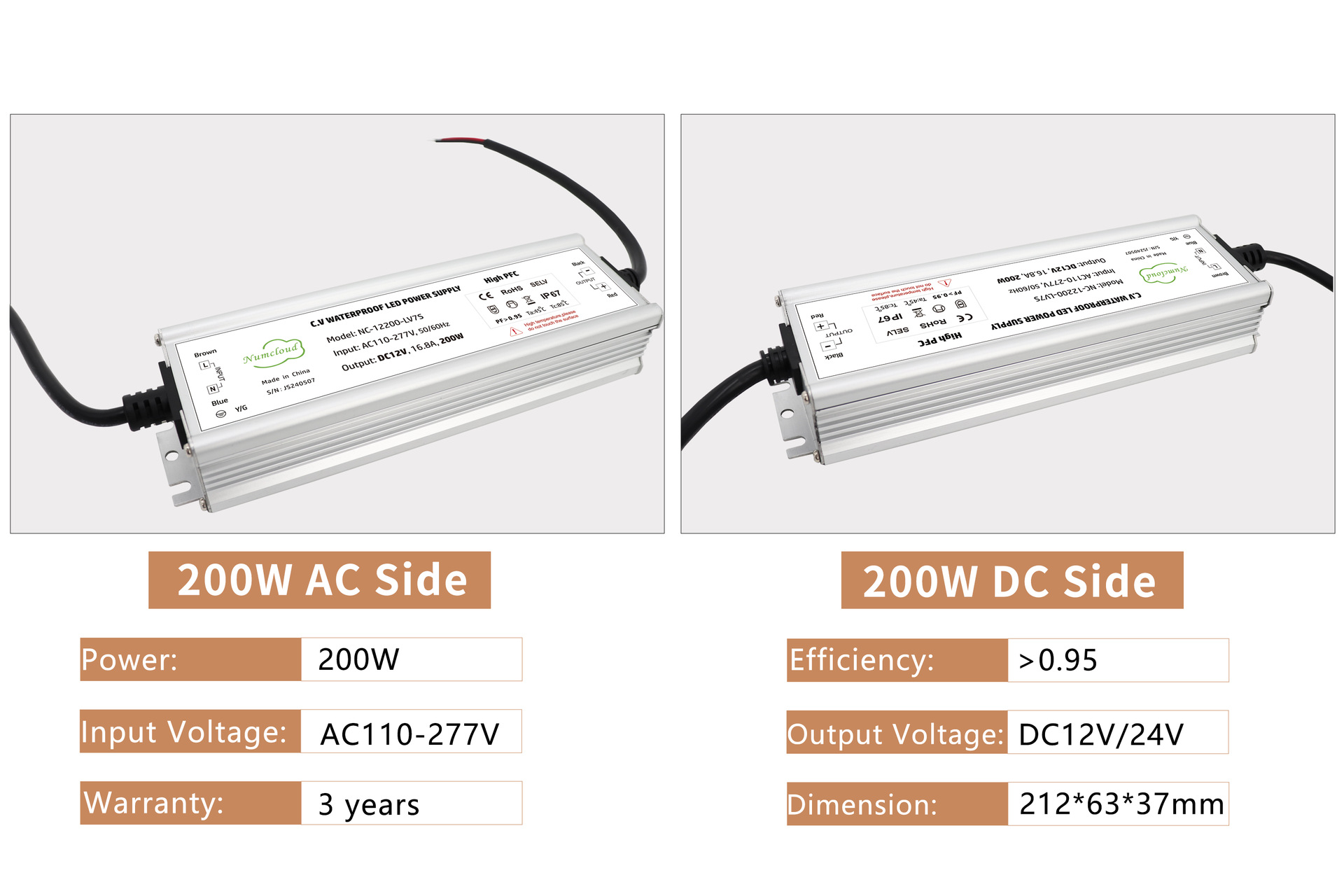

NC-12200-LV7S 200W 100-277V 12V 16.6A 90% >0.95 5 years Aluminum/ IP67 212*63*37mm 760g
NC-24200-LV7S                          24V 8.3A

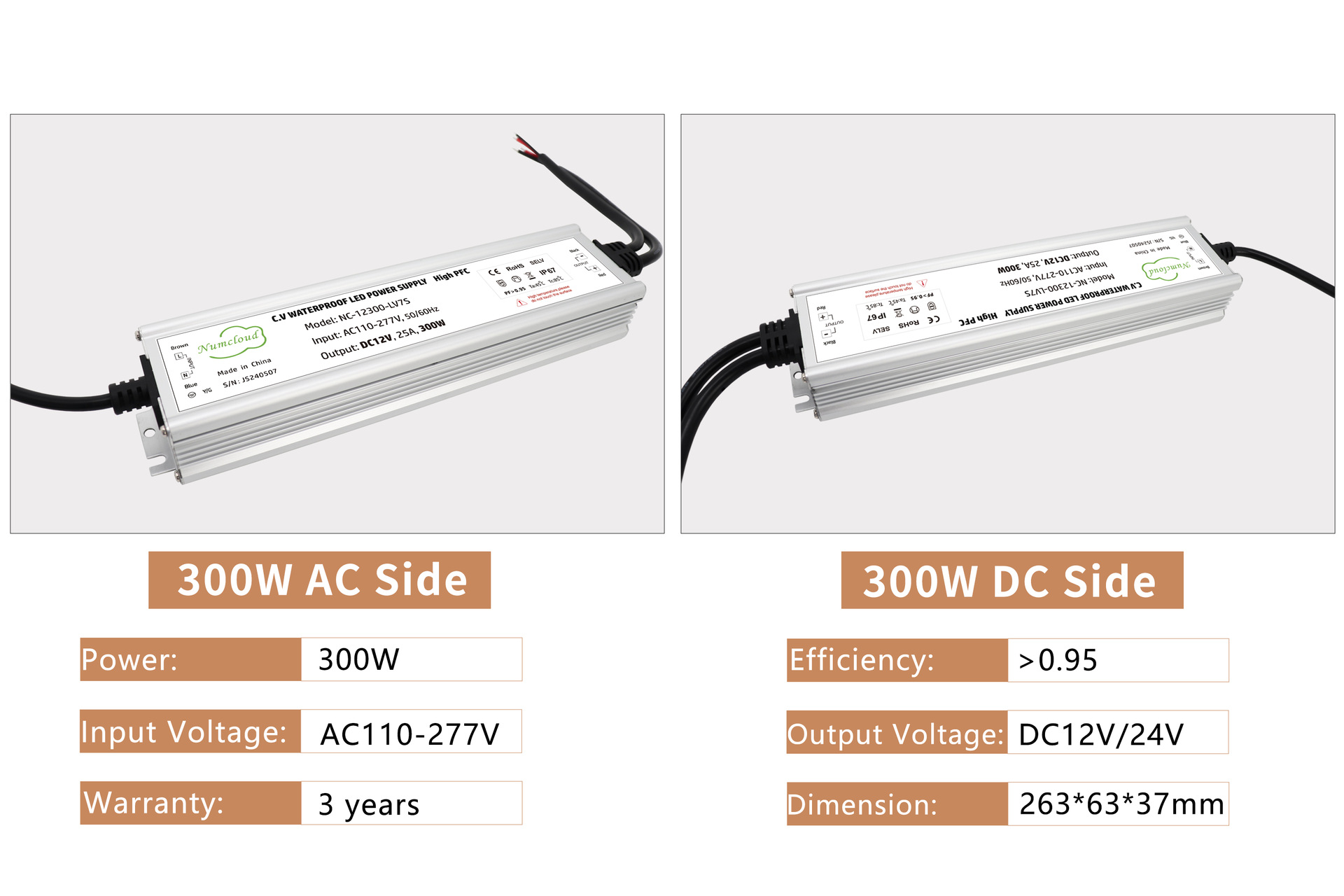

NC-12300-LV7S 300W 100-277V 12V 25A 90% >0.95 5 years Aluminum/ IP67 263*63*37mm 1000g
NC-24300-LV7S                          24V 12.5A

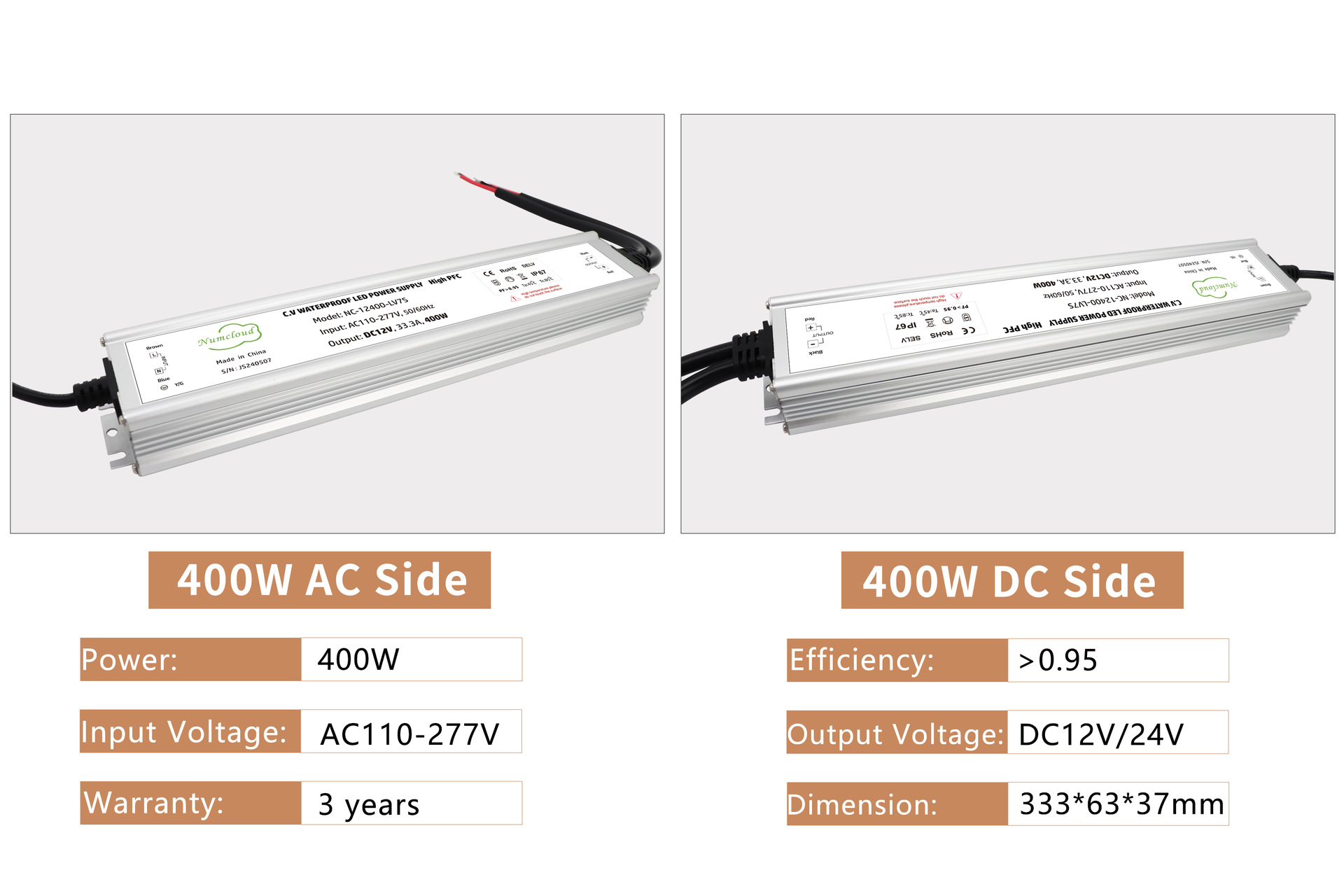

NC-12400-LV7S 400W 100-277V 12V 30A 91% >0.95 5 years Aluminum/ IP67 333*63*37mm 1500g
NC-2400-LV7S                            24V 15A
