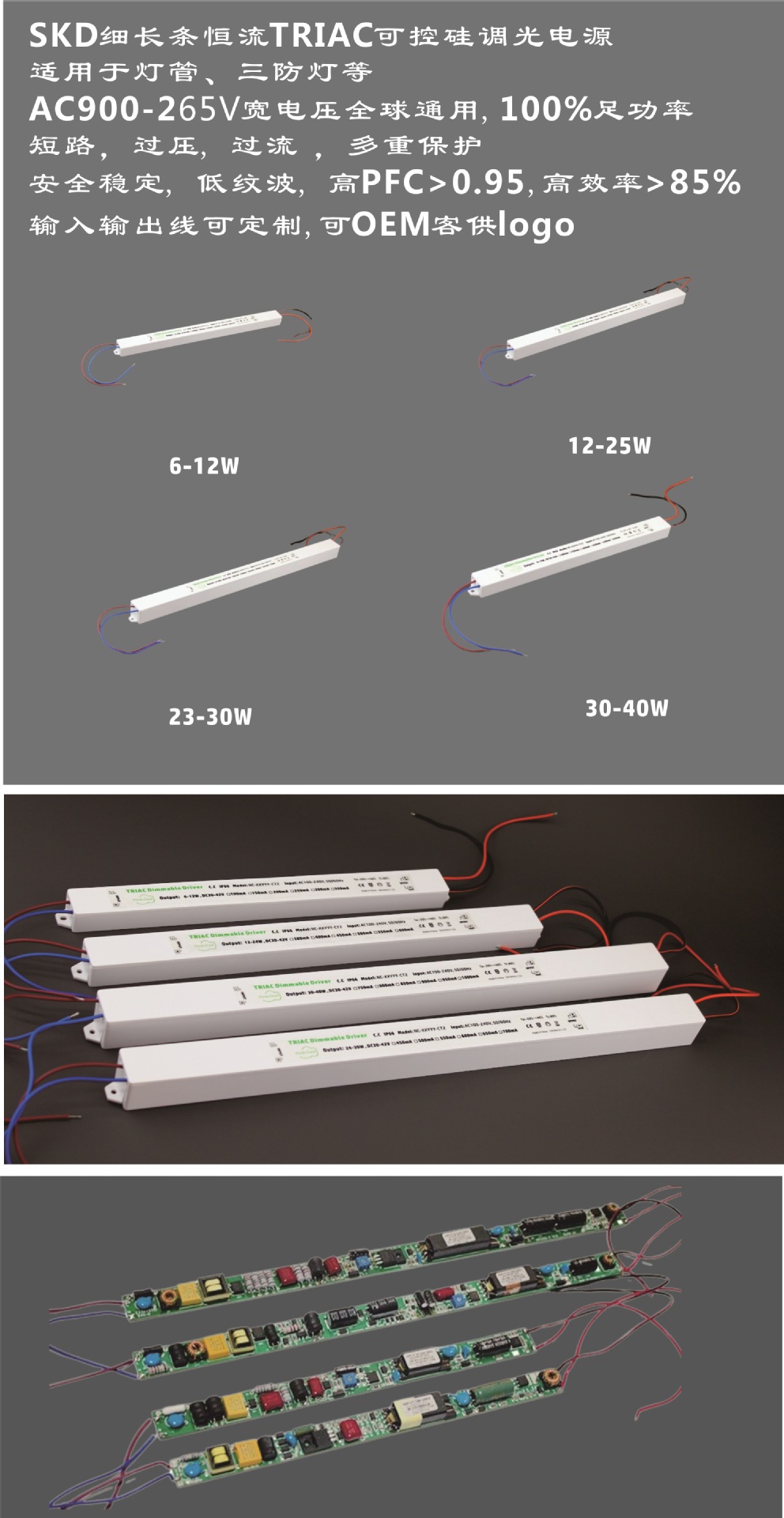

6-12W，12-25W, 23-30W,30-40W可控硅TRIAC调光电源面板灯灯管日光灯三防灯驱动SKD PCBA
输入输出线及线长可定制，OEM标签，可贴不干胶或者镭雕客供logo。

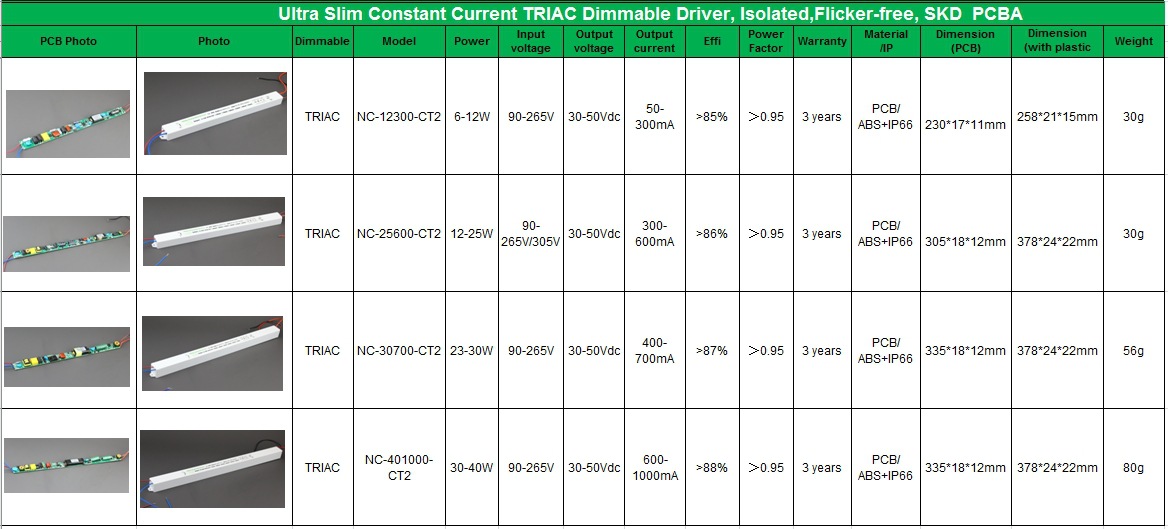

| Dimmable | Model | Power | Input voltage | Output voltage | Output current | Effi | Power Factor | Warranty | Material /IP | Dimension (PCB) | Dimension (with plastic housing) | Weight |
|

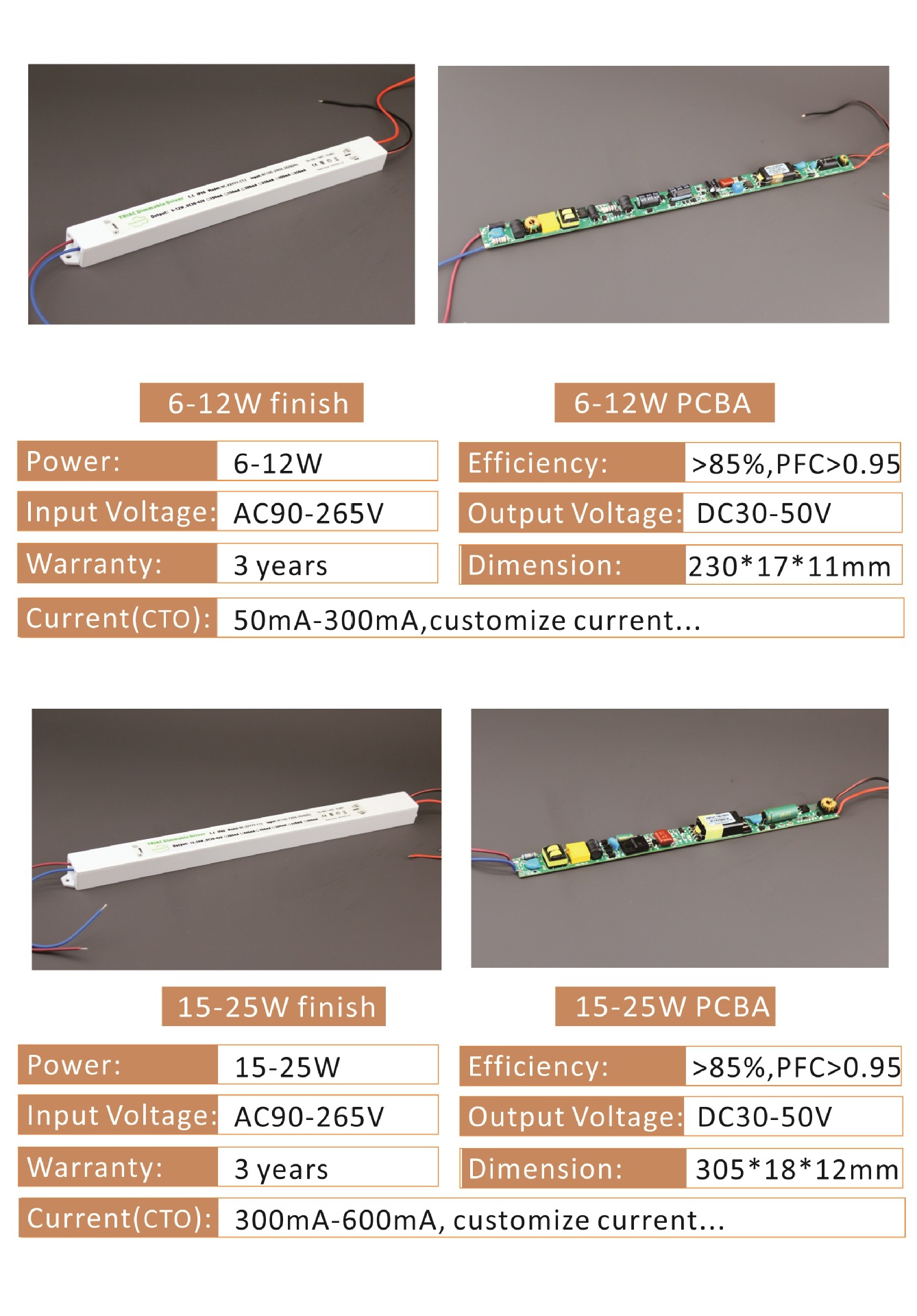

| TRIAC | NC-12300-CT2 | 6-12W | 90-265V | 30-50Vdc | 50-300mA | >85% | ＞0.95 | 3 years | PCB/ ABS+IP66 |
230*17*11mm | 258*21*15mm | 30g |
| TRIAC | NC-25600-CT2 | 12-25W | 90-265V/305V | 30-50Vdc | 300-600mA | >86% | ＞0.95 | 3 years | PCB/ ABS+IP66 |
305*18*12mm |
378*24*22mm | 30g |

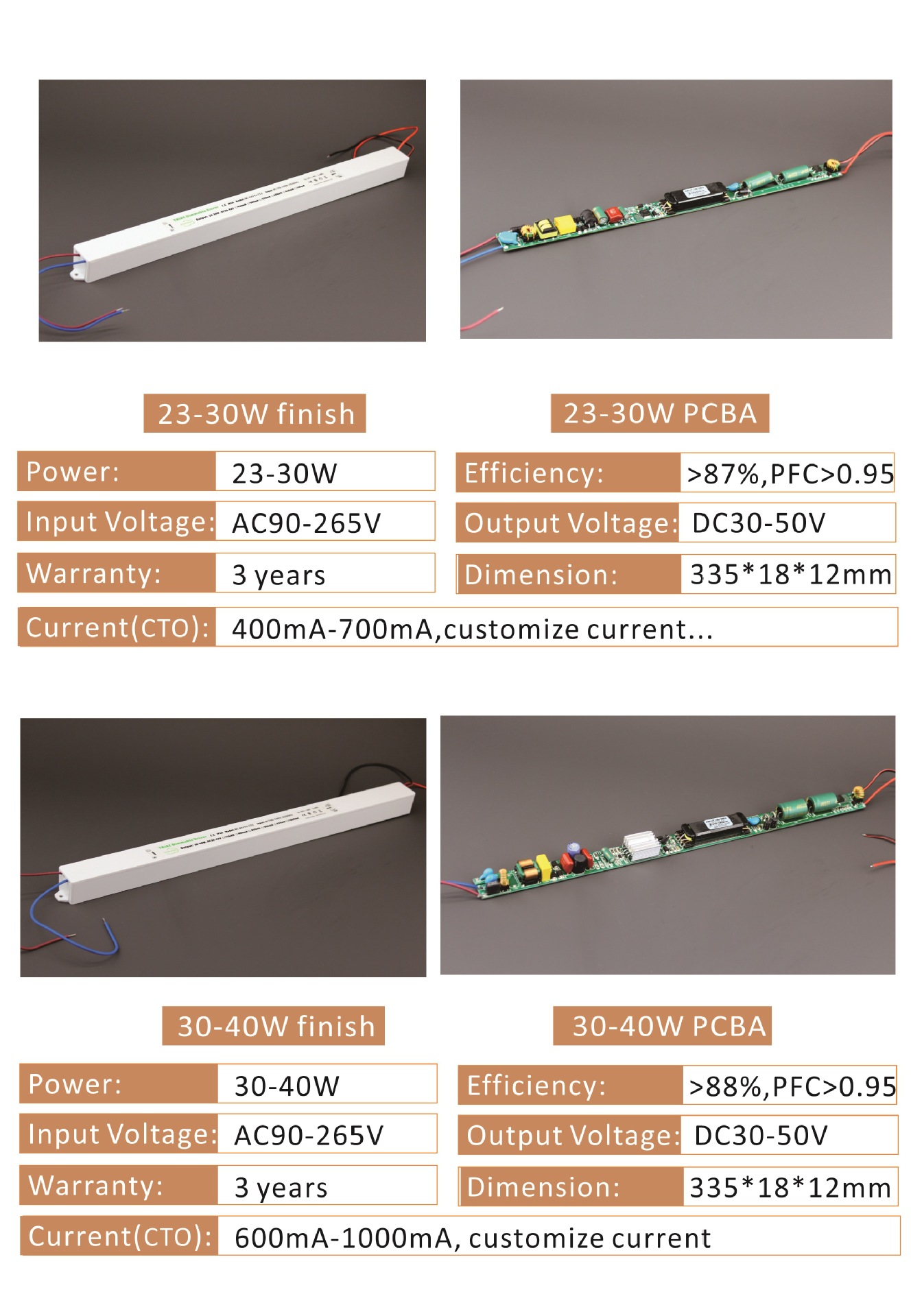

| TRIAC | NC-30700-CT2 | 23-30W | 90-265V | 30-50Vdc | 400-700mA | >87% | ＞0.95 | 3 years | PCB/ ABS+IP66 | 335*18*12mm | 378*24*22mm | 56g |
| TRIAC | NC-401000-CT2 | 30-40W | 90-265V | 30-50Vdc | 600-1000mA | >88% | ＞0.95 | 3 years | PCB/ ABS+IP66 | 335*18*12mm | 378*24*22mm | 80g |
