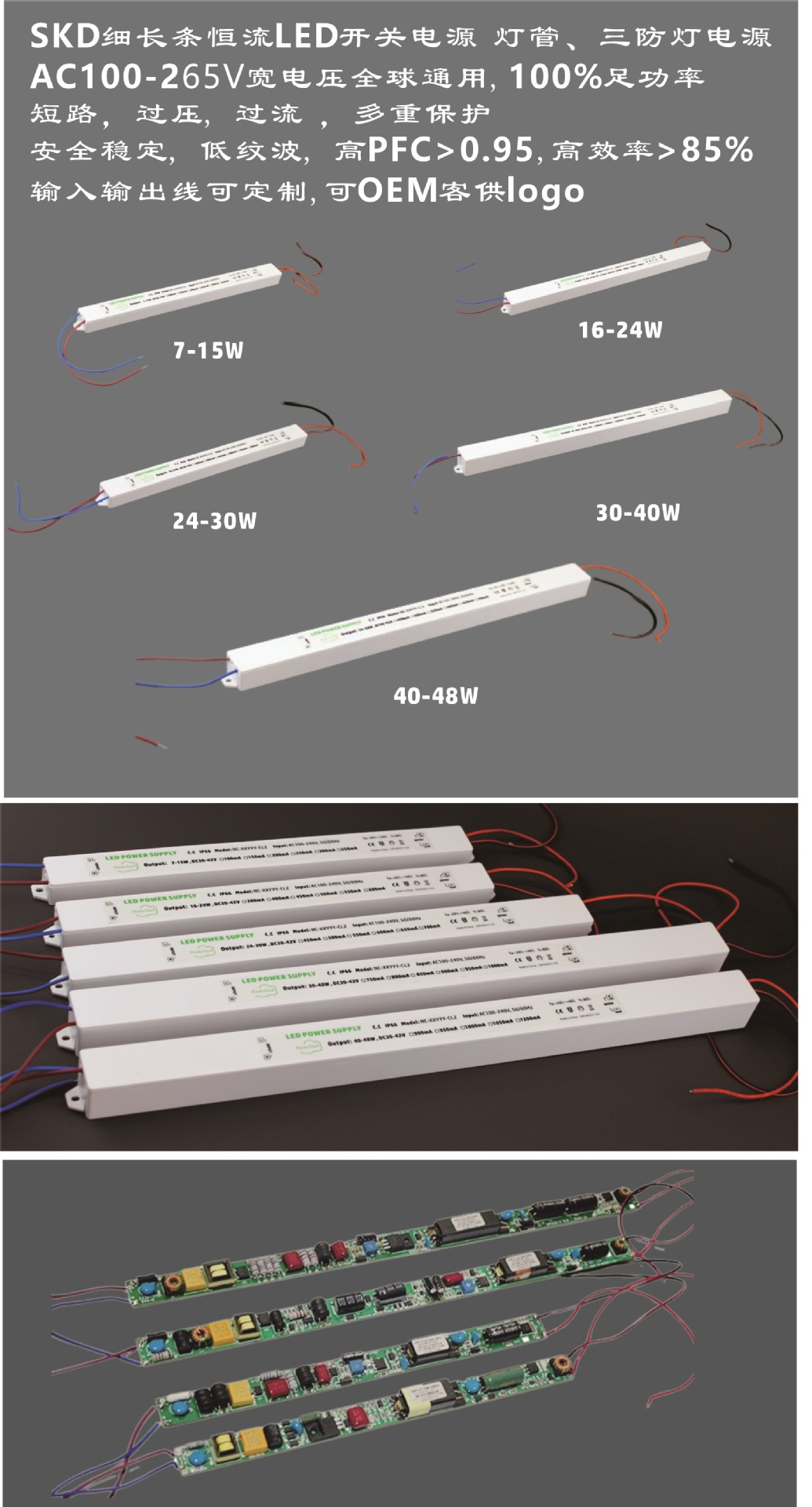

Ultra Slim Plastic Shell IP20,Flame retardant shell,PF>0.95, can develop PCBA
7-15W, 16-24W, 24-30W, 30-40W, 40-48WLED日光灯面板灯吸顶灯三防灯细长条驱动开关电源SKD PCBA
输入输出线及线长可订制，OEM客供logo, 订制请咨询客服！

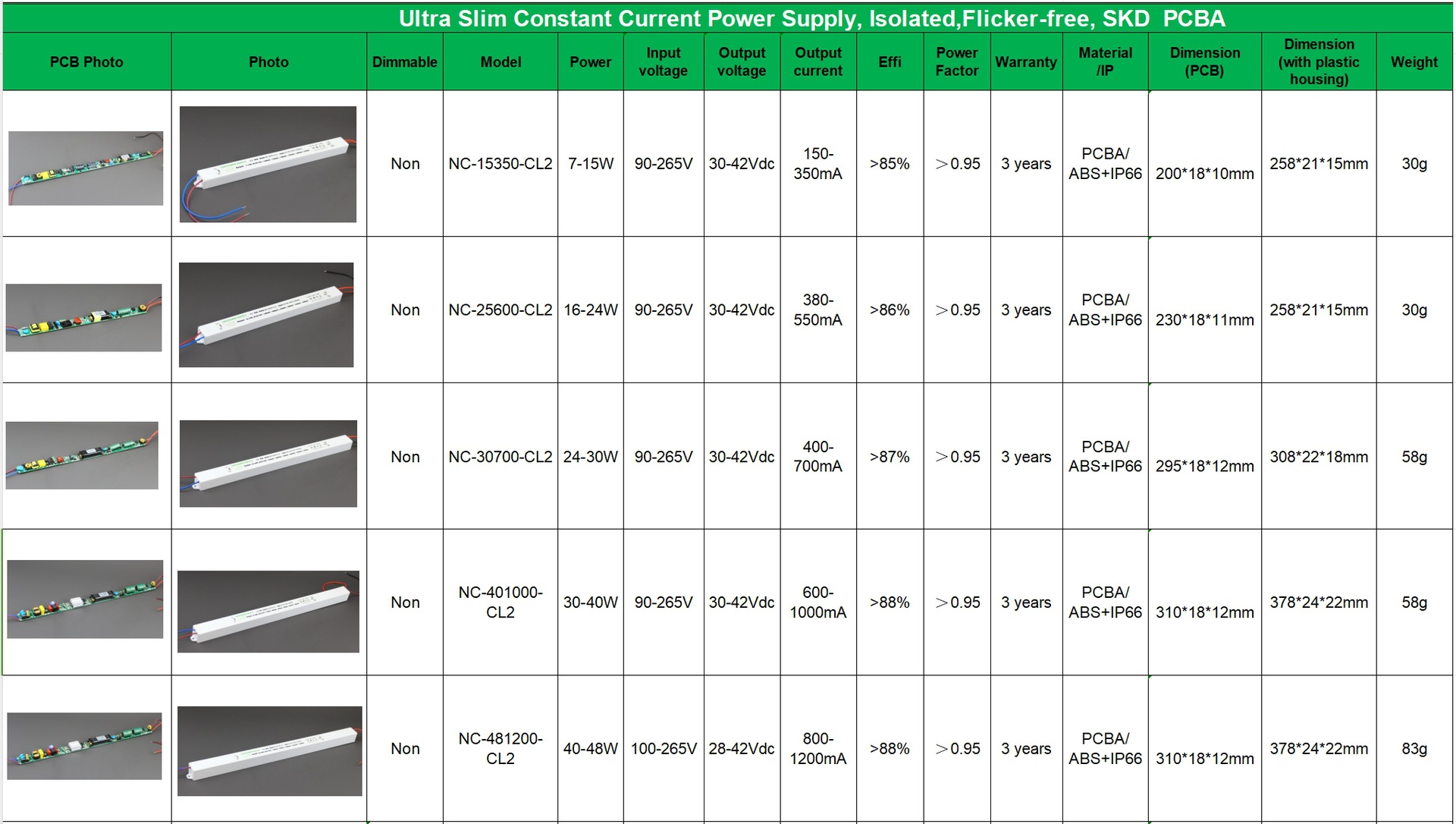

| Model | Power | Input voltage | Output voltage | Output current | Effi | Power Factor | Warranty | Material /IP | Dimension (PCB) | Dimension (with plastic housing) | Weight | |
|
|
|
|
|
|
| Power Factor | Warranty | Material /IP | Dimension (PCB) | Dimension (with plastic housing) | Weight |
|

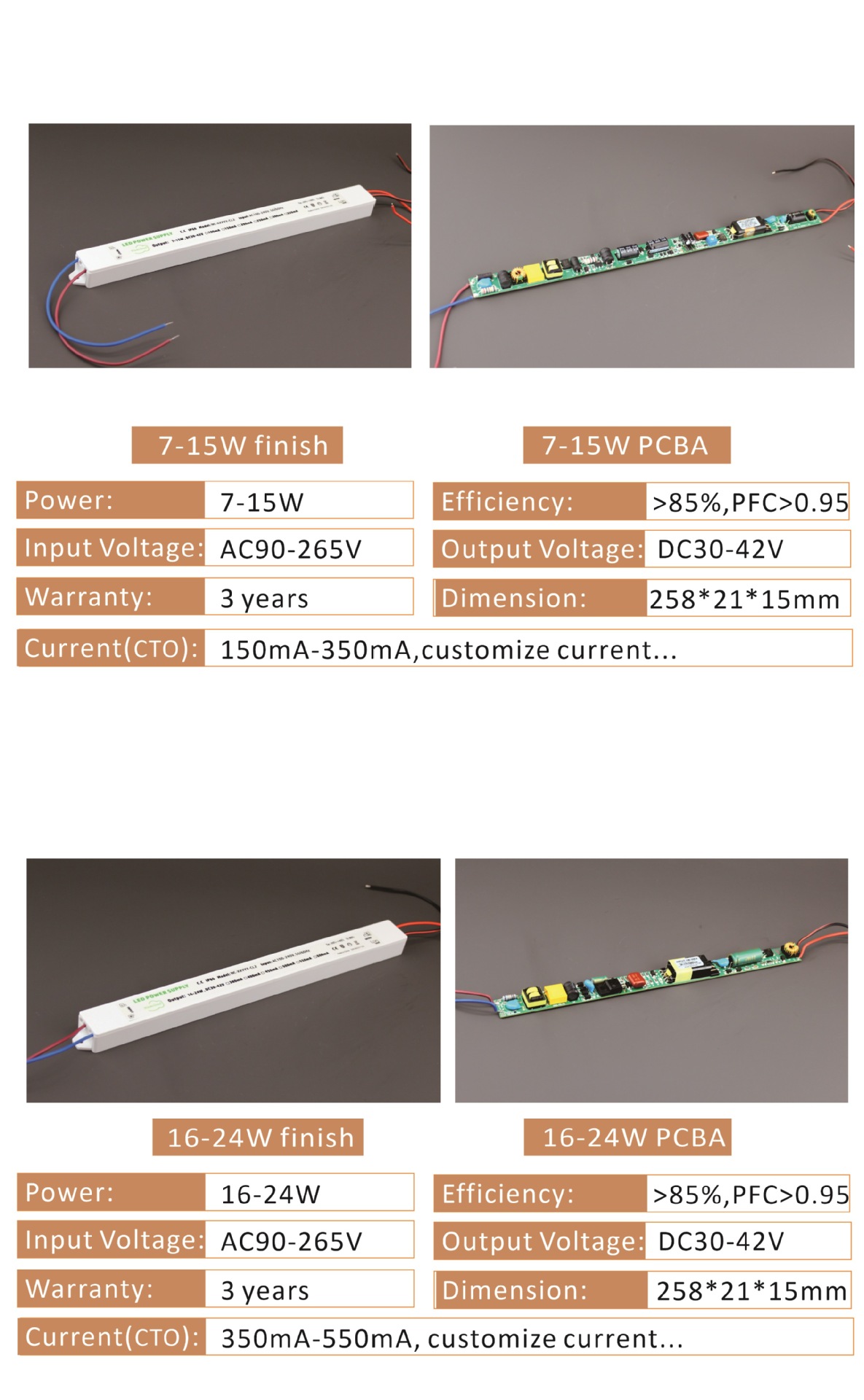

| NC-15350-CL2 | 7-15W | 90-265V | 30-42Vdc | 150-350mA | >85% | ＞0.95 | 3 years | PCBA/ ABS+IP66 |
200*18*10mm | 258*21*15mm | 30g |

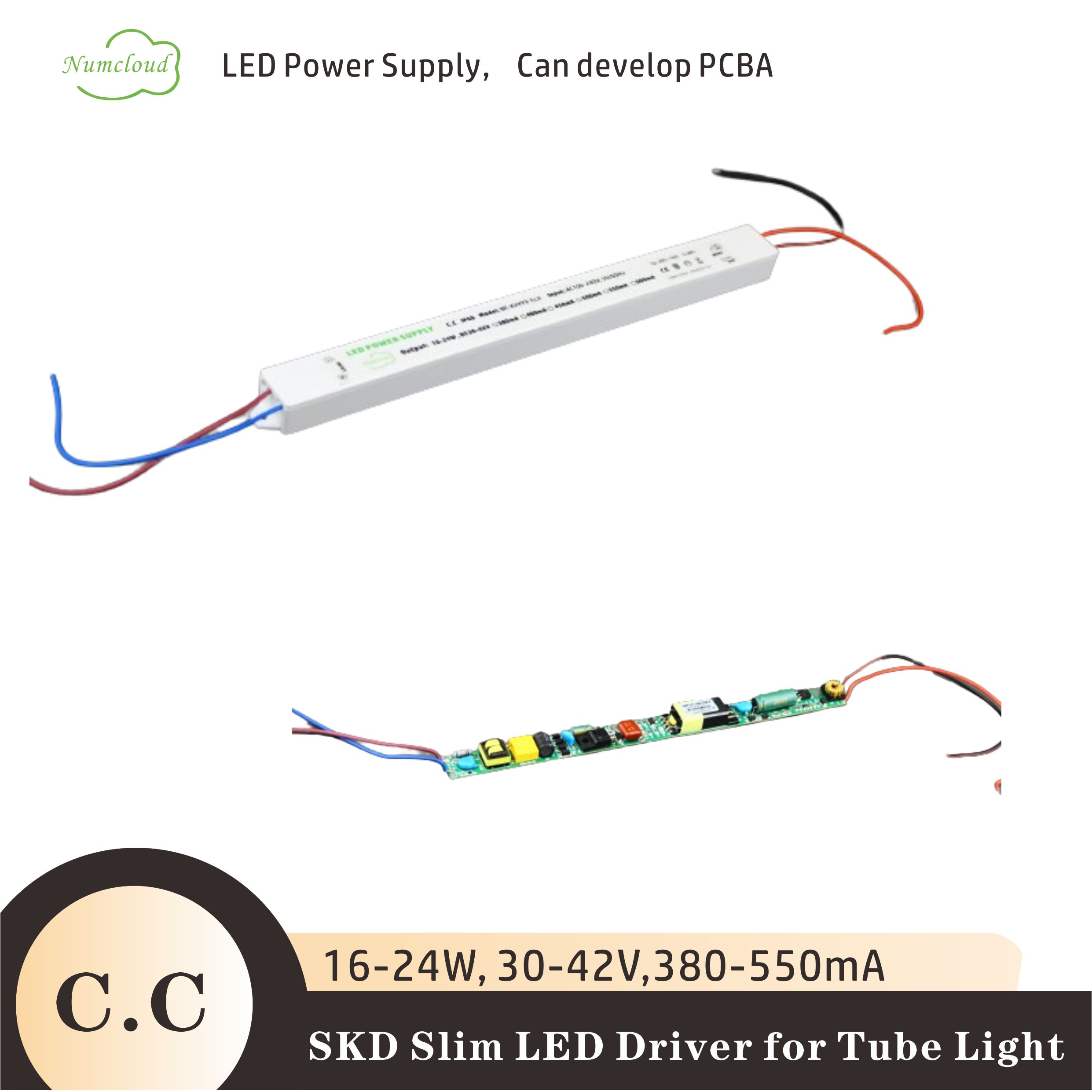

| NC-25600-CL2 | 16-24W | 90-265V | 30-42Vdc | 380-550mA | >86% | ＞0.95 | 3 years | PCBA/ ABS+IP66 |
230*18*11mm | 258*21*15mm | 30g |

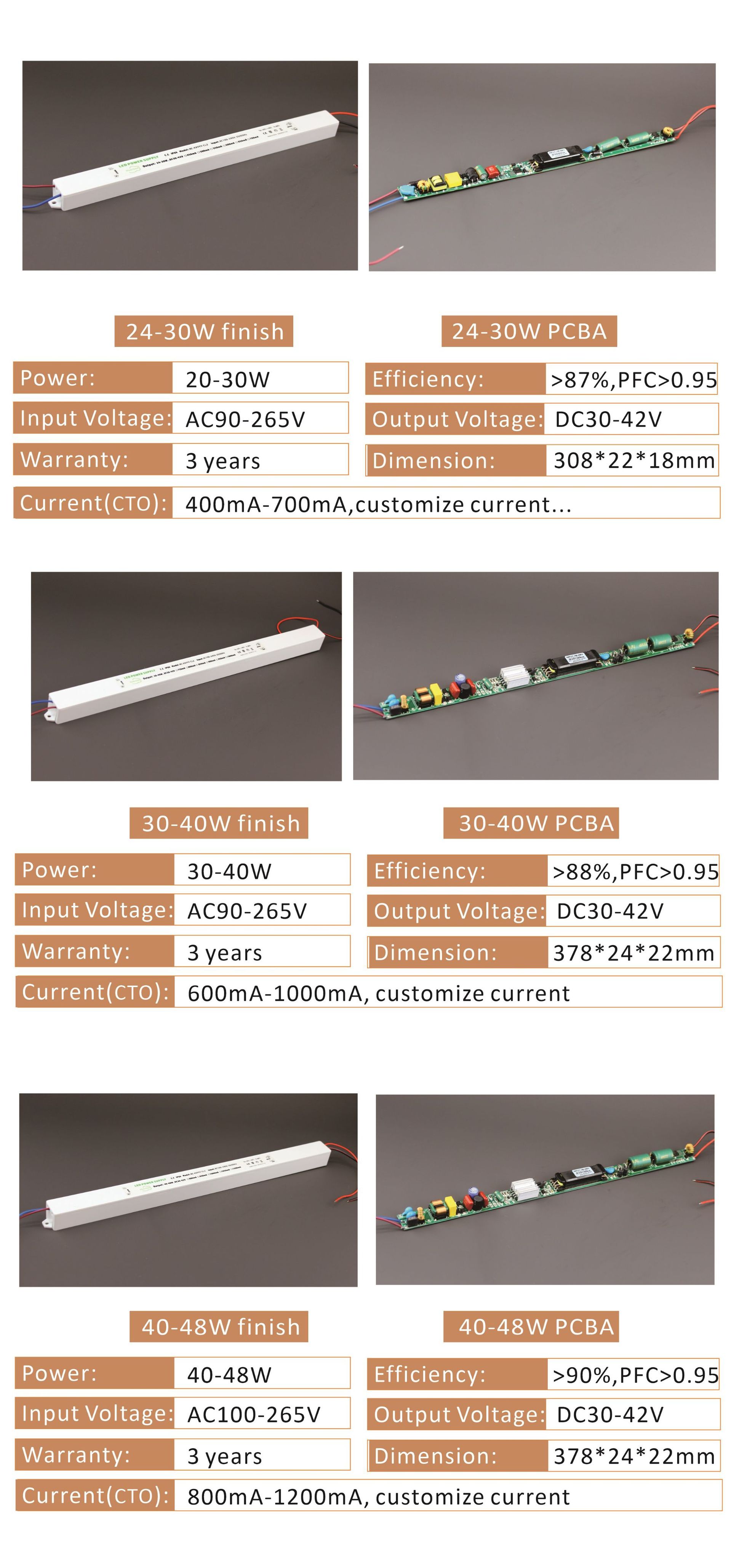

| NC-30700-CL2 | 24-30W | 90-265V | 30-42Vdc | 400-700mA | >87% | ＞0.95 | 3 years | PCBA/ ABS+IP66 |
295*18*12mm | 308*22*18mm | 58g |
| NC-401000-CL2 | 30-40W | 90-265V | 30-42Vdc | 600-1000mA | >88% | ＞0.95 | 3 years | PCBA/ ABS+IP66 |
310*18*12mm | 378*24*22mm | 58g |
| NC-481200-CL2 | 40-48W | 100-265V | 28-42Vdc | 800-1200mA | >88% | ＞0.95 | 3 years | PCBA/ ABS+IP66 |
310*18*12mm | 378*24*22mm | 83g |
